Controllers

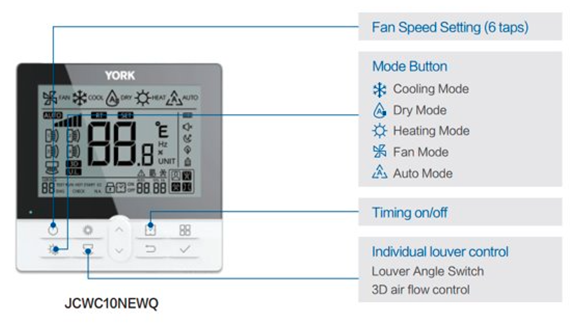

Wired Controller
Upto 16 indoor units can be controlled.

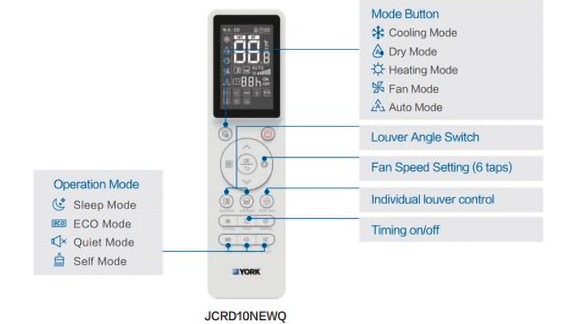

Wireless Controller

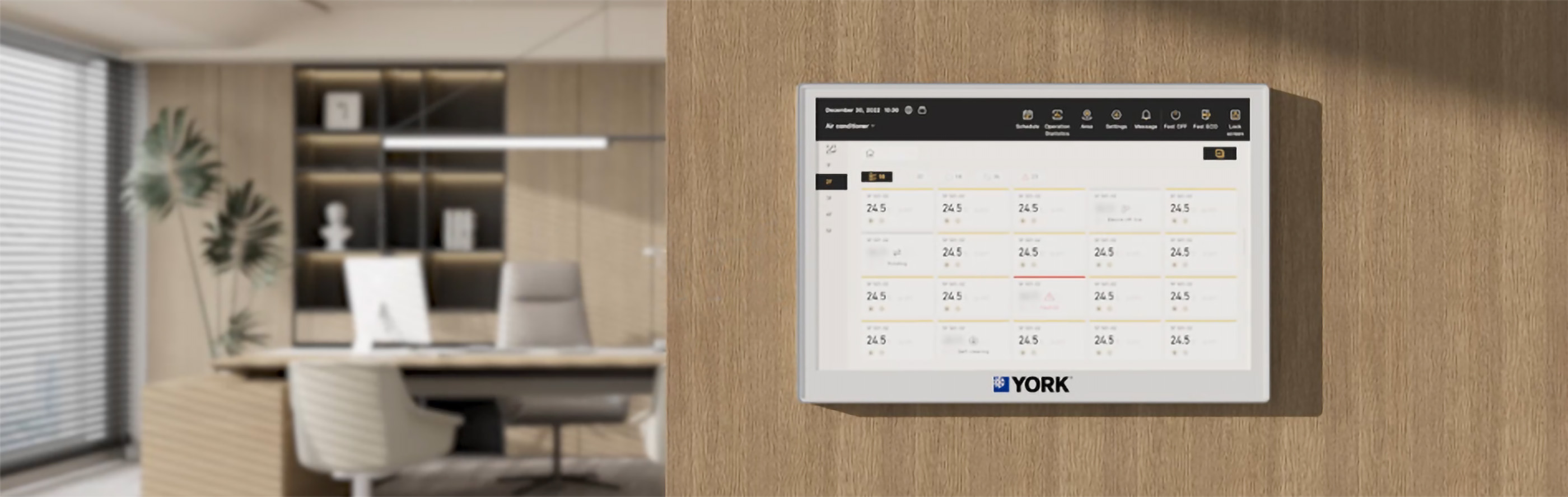

Central Smart Station
Features
- 10 inch Full-color Touch Screen
- 1280×800 High Resolution
- Simultaneous local screen operation and remote web access available
- OTA (remotely) and USB (locally) update
- Password Lock
- Intuitive Interface
- Weekly/Yearly/Holiday Schedule
- Energy Consumption Analysis

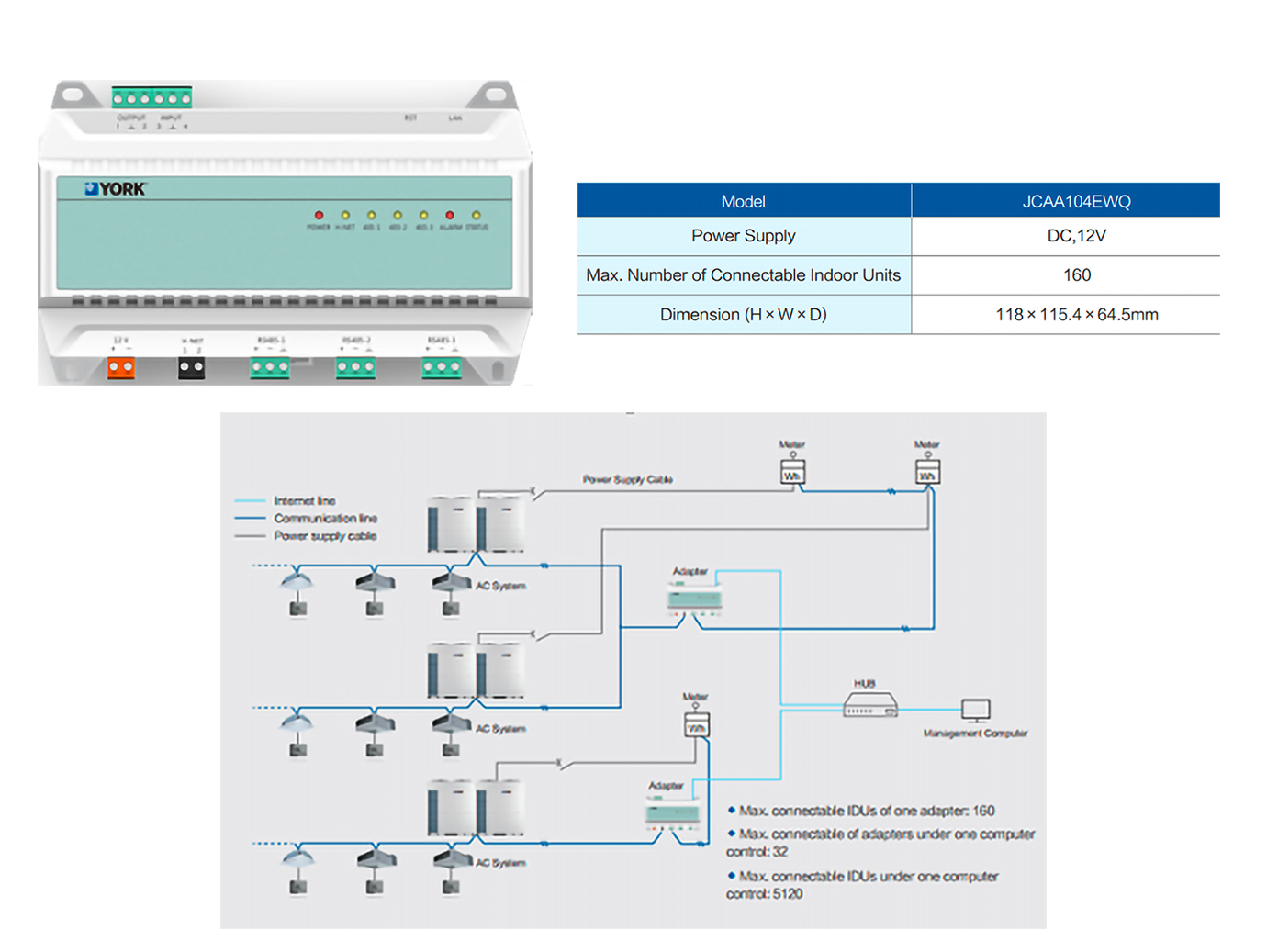

Central Station Adapter
Features
- Remote control available
- Multilevel user management
- AC control (on-off, mode, temp, air flow)
- AC locked control (running forbidden control, the max. and min. temp and cooling/heating locked)
- Running according to timer
- Malfunction history check
- Running record display
- Data synchronize
- Supporting for external I/O
- 2D navigation
- Electricity consumption allocation
- Multiple languages available
- Standard with Modbus RTU port

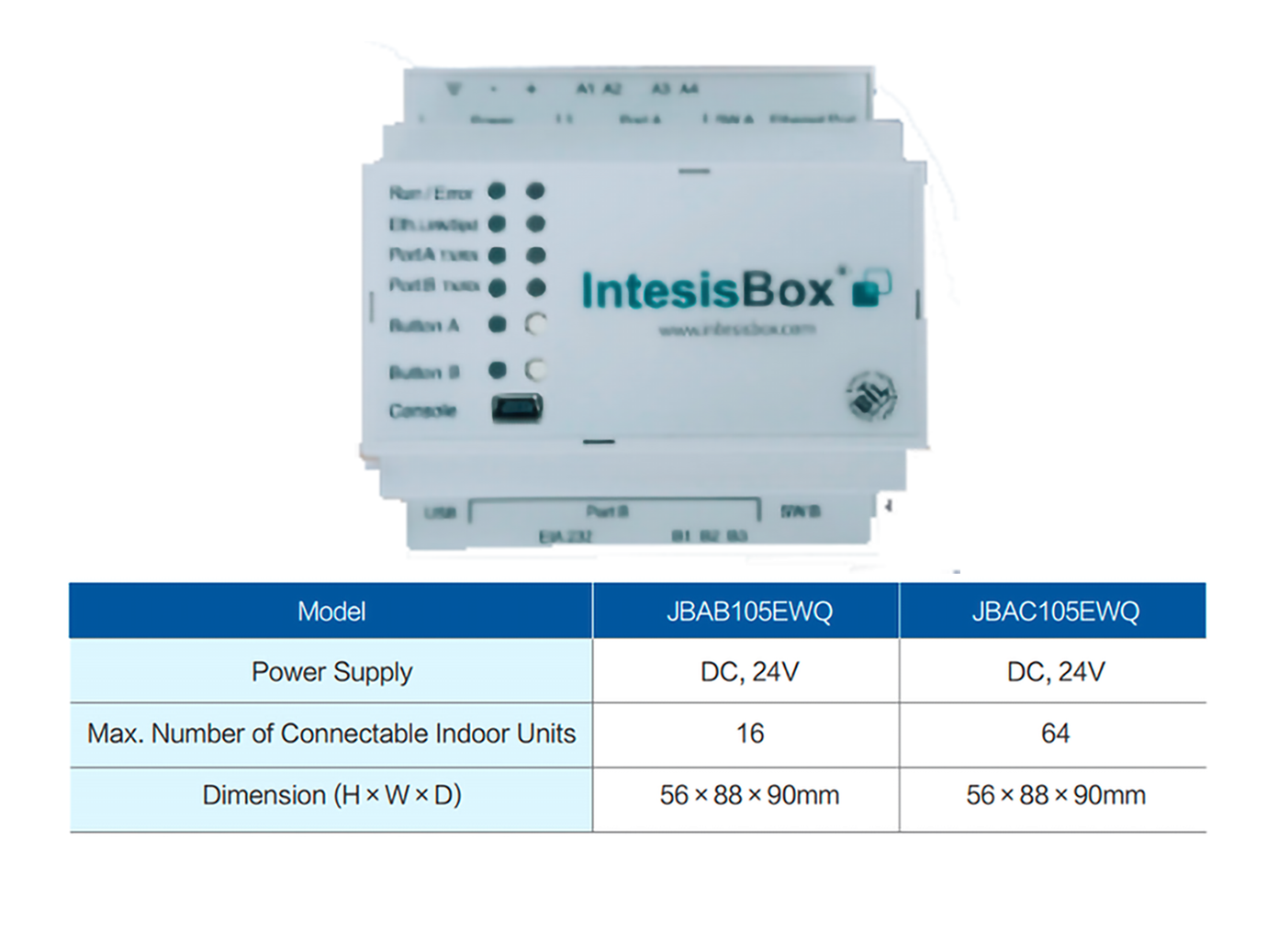

Bacnet Adapter
Features
- Central control of all indoor units
- Indoor unit data monitoring
- Heat/Dry/Fan/Cool/Auto mode
- Control-vane position swing control
- Function prohibition of wired controller

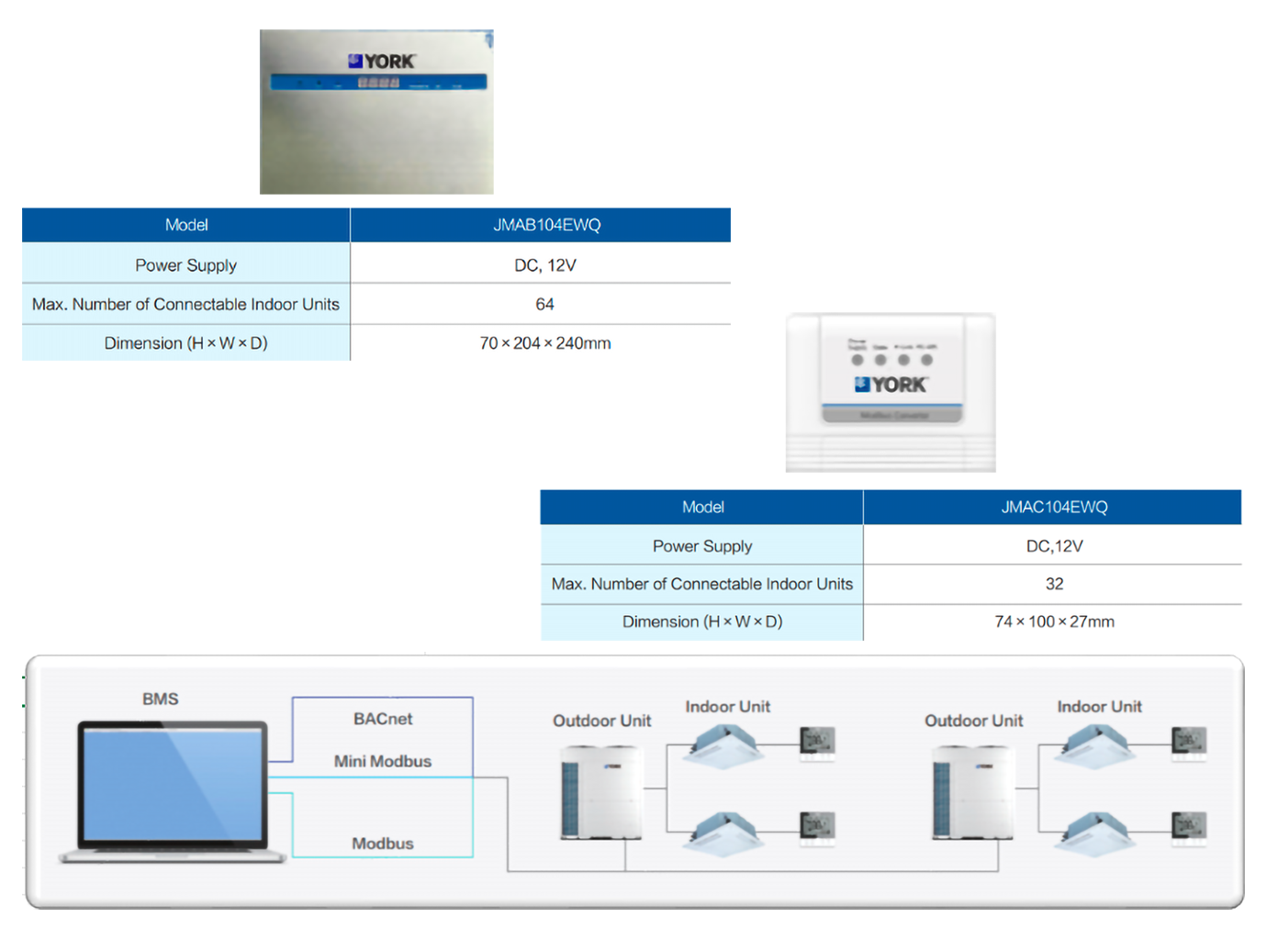

Modbus Adapter & Mini Modbus Adapter
Features
- On-Off setting
- Temperature setting
- Operating mode setting
- Inlet air temperature monitoring
- Airflow setting and monitoring
- All units On-Off control
- Alarm monitoring and code display
