Variable Refrigerant Flow (VRF) Systems
The smart choice for new construction and retrofit projects
VRF HVAC Solutions
Like duct-free mini split systems, VRF systems use refrigerant for heating and cooling. Unlike conventional chillers, you have more flexibility because you can have varying degrees of cooling in specific areas.
Features and Benefits
When you need a precise solution, YORK® VRF HVAC equipment delivers. Choose from a wide range of indoor and outdoor non-ducted and ductless HVAC units and accessories that have unsurpassed efficiency, flexible installation and more design options.
MORE EFFICIENT
Balance comfort and efficiency with non-ducted and ductless heating and cooling options for each zone. Our VRF HVAC systems deliver up to 30% energy savings compared to conventional systems.
SAVE ON INSTALLATION
YORK®'s extensive VRF HVAC solutions deliver extended operating ranges and space-saving solutions that reduce installation costs.
MORE CONTROL
System controls can be integrated into BAS or network programs using hard-wired or Wi-Fi installation to give you full-system and zone control.
YORK® VRF Systems: Measurably More Efficient
YORK® VRF HVAC equipment offers the power to design the most economical system — saving up to 39% more energy compared to traditional HVAC systems.
Products

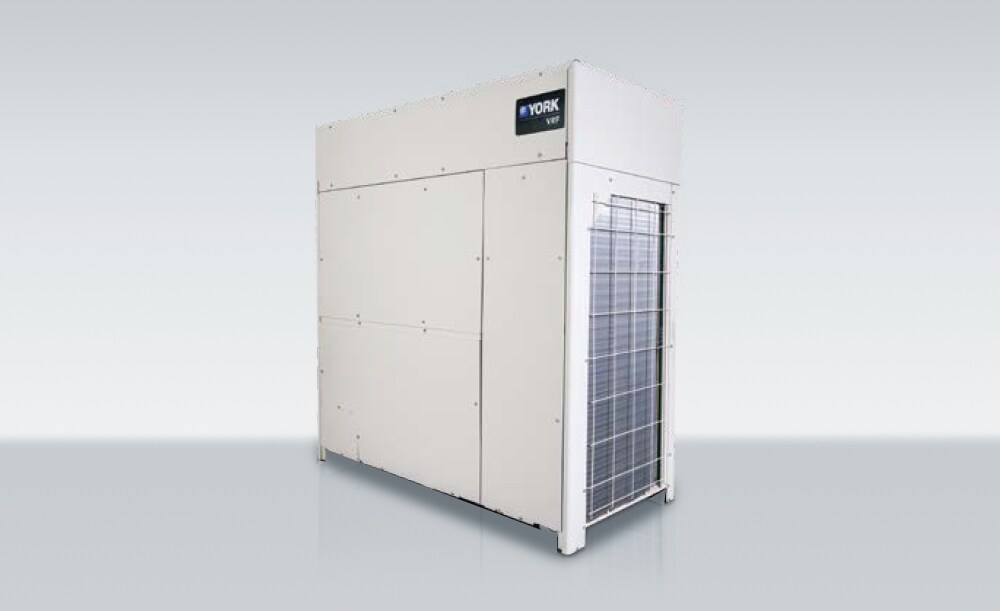

- 8-port layout provides design flexibility and easily accommodates future expansion without added labor or material costs
- Reliability optimized through continuous operation, so malfunction among connected units will not result in system shutdown
- Fine mesh strainers protect valves and further increase reliability
- Single-chassis units in 6, 8, 10, 12, 14 and 16 Tons enable system designs with fewer units and system sizes up to 36 Tons
- 54.3" height
- Optional wireless remote controller, wired zone controller, wired central controller or wired BMS adapter(s)
- Systems are designed with dual heat recovery so heat can be recovered in both the water and refrigerant circuits
- Dual fuels can be used and include electricity for VRF units and natural gas or electricity for boiler
- Less refrigerant is required for water-source, VRF for easier compliance with ASHRAE Standard 15
- Slim, compact design is ideal for perimeter zone cooling and installation when space is limited
- Capacities are available in 4 tonnages with up to 15,000 BTUh
- Features 3 fan speeds for precise comfort
- Supports SD memory card and USB flash device
- Tenant billing with optional energy calculation software
- Function selection of indoor unit through central controller
- Multiple fan speed settings
- 4 air volume settings – including Ultra Hi for higher ceilings
- 4-way airflow can be configured for 2-way or 3-way
- Rigid-case-construction interior endoskeleton
- Powder-painted G30 galvanized steel
- MaxAlloy™ coil
- Controls temperature, mode and fan speed
- Features a seven-day time with multiple set points
- Controls up to 16 indoor units
- Controls up to 32 groups of indoor units (maximum 160 units)
- User-friendly touch-screen interface
- Set up to 10 on/off times per day
- Optimized reliability through continuous operation
- Malfunctions among connected units do not result in system shutdown
- Fine mesh strainers protect valves and further increase reliability
- Delivers up to 1.16 WG static pressure
- Wide range of tonnage capacities can achieve up to 96,000 BTUh
- High-efficiency fan motor and multiple fan-speed settings enhance performance and comfort
- At only 9-1/4" (235 mm) tall, the unit can be installed at a small height such as a clipped ceiling
- The shutter function closes the air outlet with the louver when the operation is stopped.
- Side pocket covers are provided on both sides of the decorative panel so height can be adjusted easily without removing the panel.
