HMH7 18 SEER Horizontal Discharge Heat Pump

Compact Design With Expansive Flexibility

The YORK® HMH7 heat pump is the ideal solution for spaces that require a compact design, but without any compromise to comfort or efficiency. Enjoy a higher level of efficiency and increased comfort in a small package.

Benefits

LOWER ENERGY BILLS

Up to 18 SEER and up to 10.5 HSPF efficiency ratings can result in lower utility bills vs. older units.

PRECISE, CONSISTENT TEMPERATURES

Modulating technology maintains exact temperatures by operating from 35-100% capacity, matching the precise degree of heating required.

QUIET OPERATION

The sturdy cabinet and unique fan design provide sound performance as low as 54 dBA (about the same sound level as a running dishwasher).

MORE SYSTEM OPTIONS

YORK® HMH7 heat pumps can be matched with many YORK® high-efficiency air handlers and evaporator coils for an even higher level of comfort.

Features

Inverter system smoothly ramps up operation, avoiding spikes in energy use while helping increase overall system longevity
40% more compact than standard heat pump units – ideal for high-density areas
Side-discharge design removes need to clear snow or organic debris from top of unit

Innovative fan design creates less vibration and provides quieter operation
Compatible with conventional equipment and devices

Warranty

With a YORK® residential system, comfort is more than a feeling – it’s a promise. Because YORK® home comfort systems are built to the highest standards and backed by the best warranties.

Register Your Warranty

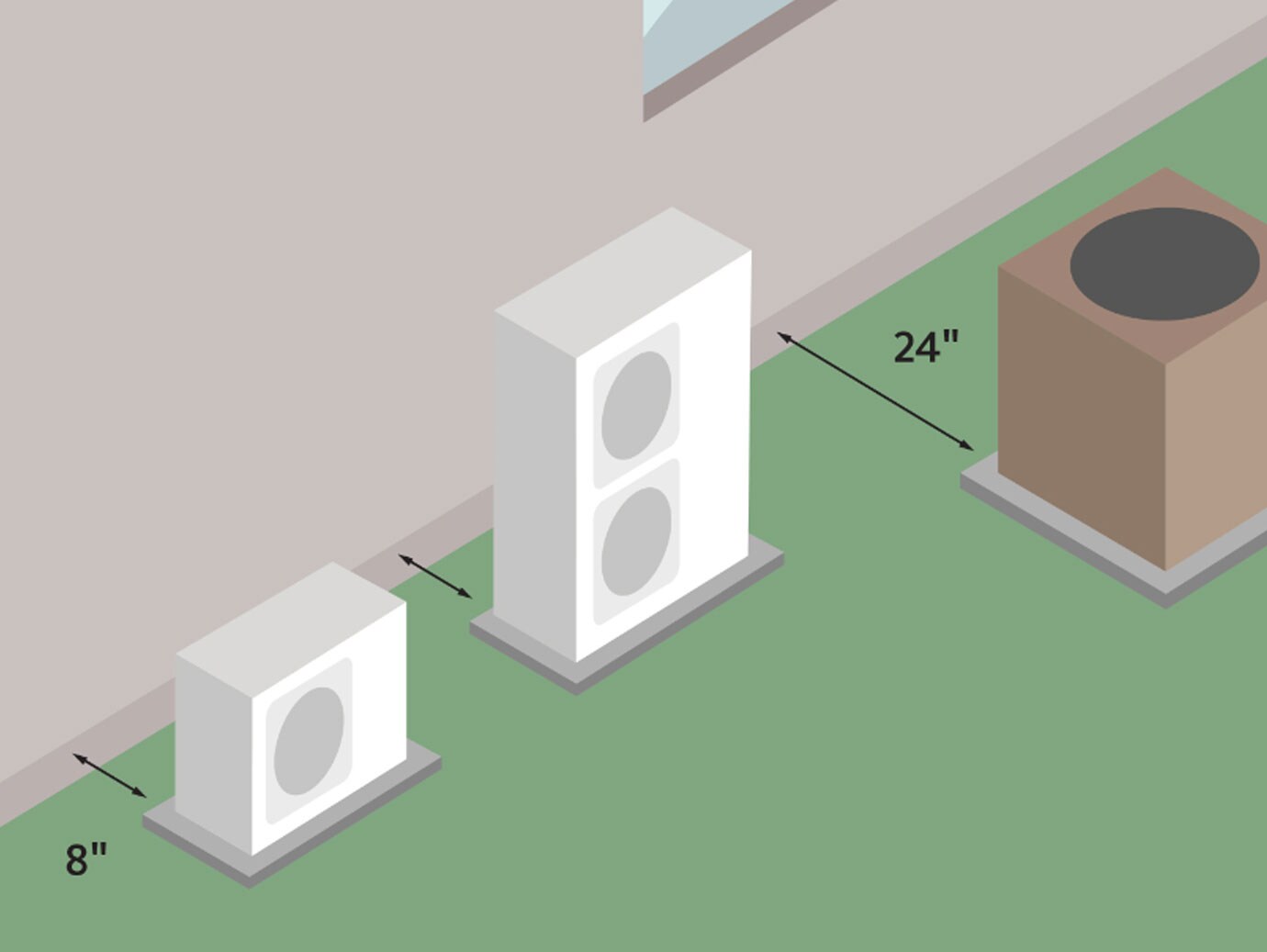

Horizontal Discharge VS. Vertical Discharge

The side-discharge design of the YORK® HMH7 is more efficient than traditional top-discharge designs in both size and operation. Snow and organic debris won’t hamper operation, and the sleek design results in 36% quieter operating volume and a 40% smaller footprint compared to standard heat pump units. With a setback distance of only eight inches, the HMH7 is perfect for high-density areas, unlike traditional horizontal-discharge units, which often require at least 24 inches.

Technical Specification

Coil	Enhanced copper tube bonded to enhanced aluminum fins	Compressor Type	Twin Rotary
Energy Star	No	Tonnage Range	2, 3, 4, 5 Tons
SEER Range	Up to 18 SEER	Parts Warranty Code	10-year Parts Limited Warranty*
Warranty Other	10-year compressor Limited Warranty*

Owner Resources

Getting Started

HVAC Glossary

Pre-service Checklist

Support

BUYING OR SERVICING A SYSTEM

Contact your local dealer for help with your existing system or to learn more about investing in a new one.

WARRANTIES AND REGISTRATION

Find your local dealer for more information on our warranties and warranty registration.

FINANCING

Learn about our affordable financing plans so you can purchase a new YORK® comfort system that fits your budget.

Technical Resources

Document Name

Description

Language

Resource Type

Brochure

jciy11382-york-17seerhorizontalhplaunch–contractorsellsheets-d23f-low-res (English)

YORK® Residential Heat Pumps

English Brochure

VIEW

Data Sheet

jciy11382-york-17seerhorizontalhplaunch_contractorsellsheets-d23f-low-res (English)

YORK® Residential Heat Pumps

English Data Sheet

VIEW

Installation Manual (IM)

6046972-uim-a-0221 (English)

Installation Manual: HMH7 Series - 17 SEER Horizontal Discharge Modulating Heat Pump

English Installation Manual (IM)

VIEW

User Guide

6046973-uum-a-0121 (English)

User's Information Manual: HMH7 Series - 17 SEER Horizontal Discharge Modulating Heat Pump

English User Guide

VIEW

Line Cards

dx2301005c_residential%20line%20card_updates_yk_digital (English)

YORK® Residential products

English Line Cards

VIEW

Specification Guide

dx2301005b_res_buying_guide_yk_digital (English)

YORK® Residential Split Systems Homeowner buying guide

English Specification Guide

VIEW

No resource found for selected filter

Back

Get the Details

*To receive the extended 10-year parts warranty or premium system warranty for qualifying units, you must register online at www.upgproductregistration.com. Registration must be completed within 90 days of installation or 90 days of the closing date for new home construction. Failure to register online within 90 days results in a standard 5-year parts warranty. Failure to return the registration card does not affect rights under the standard warranty.

Price Range	$$
Efficiency Range	Up to 18 SEER
Sound Levels	As low as 54 dB
Warranties	10-year compressor, 10-year parts

HMH7 18 SEER Horizontal Discharge Heat Pump

Exceptional comfort, value and flexibility
